Stainless Steel Double Wire Hose Clips & Clamps
Shop stainless steel double wire hose clips for spiral, corrugated and reinforced hoses. Choose smaller 13-80mm clips for applications such as pond hose, irrigation and selected automotive or general-purpose connections, or larger 85-200mm clamps for ducting, heating and ventilation hose.
Measure the outside diameter of the hose after it is fitted over the connector, then choose a clamp range that contains that measurement. Check the exact material grade, wire diameter, fastener dimensions and pack quantity on the selected product page.
Stainless Steel Double Wire Hose Clips
Double wire hose clips are designed for compatible spiral, corrugated and reinforced hoses. The two parallel wires can sit on either side of the raised hose helix, while the screw mechanism reduces the clamp diameter around the connection.
This construction makes double wire clips a useful alternative to flat-band worm-drive clips where the hose profile suits the twin-wire design. They are not a universal replacement for every hose clamp: the correct choice depends on the hose construction, outside diameter, fitting, operating conditions and required clamping performance.
Double Wire Clips from 13mm to 200mm
Our range is divided into two product families. Together they cover smaller 13-80mm hose connections and larger 85-200mm applications. Because there is a gap between the two ranges, always check the actual selectable sizes rather than assuming that every diameter between 13mm and 200mm is available.
13-80mm Double Wire Hose Clips
The smaller clips are suitable for selected soft and semi-rigid hoses with spiral or braided reinforcement. Typical uses include flexible pond hose, irrigation equipment, agricultural applications, domestic appliances and selected automotive or general industrial connections.
These clips are listed as W4 stainless steel. Wire diameter varies across the available clip sizes, so check the individual product specification before ordering.

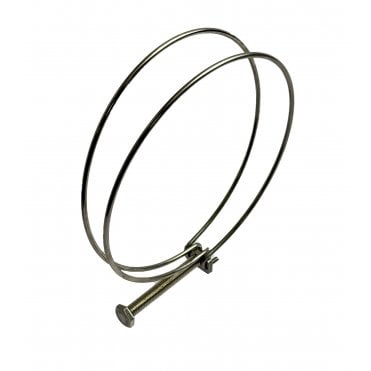

85-200mm Large Double Wire Clamps
The larger clamps are intended for compatible large-diameter spiral hose used in ducting, heating and ventilation applications. Their larger fastener and support plate distinguish them from the smaller double wire clips.
The current large-clamp range is specified as SS304 stainless steel. Confirm the selected adjustment range and hose compatibility before installation, particularly where pressure, vibration, temperature or environmental exposure may be relevant.
How to Select the Correct Size
- Fit the hose over its connector, pipe or hose-tail fitting before measuring.
- Measure the complete outside diameter of the assembled hose at the intended clamp position.
- Choose a clip whose stated adjustment range contains that measurement.
- Check that the two wires align correctly with the profile of the spiral or corrugated hose.
- Confirm the material, wire diameter, fastener dimensions and pack quantity shown for the selected option.
- Tighten according to the hose, fitting and equipment instructions without crushing or distorting the hose.
Do not select a clip using the hose's nominal internal diameter unless the product instructions specifically require it. The clamp must fit around the outside of the assembled hose and connector.
Common Applications
- Flexible pond and filtration hose
- Spiral and corrugated hose connections
- Irrigation and agricultural equipment
- Selected automotive hose connections
- Domestic appliances and general equipment
- Large ducting and extraction hose
- Heating and ventilation hose
These are general application categories, not universal suitability claims. Check the specification of the exact clip alongside the hose manufacturer's requirements.
Double Wire Clips or Worm-Drive Hose Clips?
Double wire clips are shaped to work with compatible profiled hose, allowing the wires to sit around the raised helix. A conventional worm-drive clip uses a flat metal band and is commonly selected for smooth-wall hose and general-purpose connections.
The hose profile should determine the clamp style. Do not assume that one type will provide an adequate connection simply because its diameter range fits.
Material and Installation Checks
The two current product families use stainless steel constructions, but their published specifications are not identical. The smaller range is described as W4 stainless steel, while the larger range is described as SS304. Check the exact product rather than applying one specification to the entire department.
Stainless steel construction does not automatically establish suitability for every chemical, marine, food, high-temperature or high-pressure application. These properties must be verified for the exact clip, hose and operating environment.
Inspect the connection after installation and during routine maintenance. Replace any clip showing damage, severe corrosion, deformation, a damaged fastener or an inability to maintain the required connection.
Related Hose Clamps
- Browse the complete hose clamps and hose clips range.
- Choose standard hose clips for compatible general-purpose and smooth-wall hose connections.
- Compare T-bolt clamps for suitable larger or more demanding applications.
- View high-torque hose clamps where documented higher clamping performance is required.
- Find compatible installation products in our hose clamp tools department.
Frequently Asked Questions
What is a double wire hose clip?
It is a screw-adjusted clamp formed from two parallel wires. The design is commonly used with compatible spiral or corrugated hose because the wires can sit around the raised hose profile.
How do I measure for a double wire hose clip?
Fit the hose over its connector and measure the outside diameter at the intended clamp position. Select a listed adjustment range that contains this measurement.
Can double wire clips be used with pond hose?
The smaller 13-80mm range includes options intended for compatible flexible pond and spiral hose. Check the exact hose diameter, construction and selected clip size before ordering.
Which clamps are suitable for large ducting hose?
The 85-200mm product family is intended for compatible large spiral hose used in ducting, heating and ventilation applications. Confirm the exact adjustment range and operating requirements.
Are double wire hose clips suitable for high-pressure applications?
Not automatically. The smaller current range is presented for low-pressure applications, and the department does not establish a universal pressure rating. Verify the required pressure performance for the exact hose, fitting and clamp.
Are all the clips made from the same stainless steel grade?
No single grade should be assumed across the department. The smaller range is currently described as W4 stainless steel, while the larger clamps are described as SS304 stainless steel.
