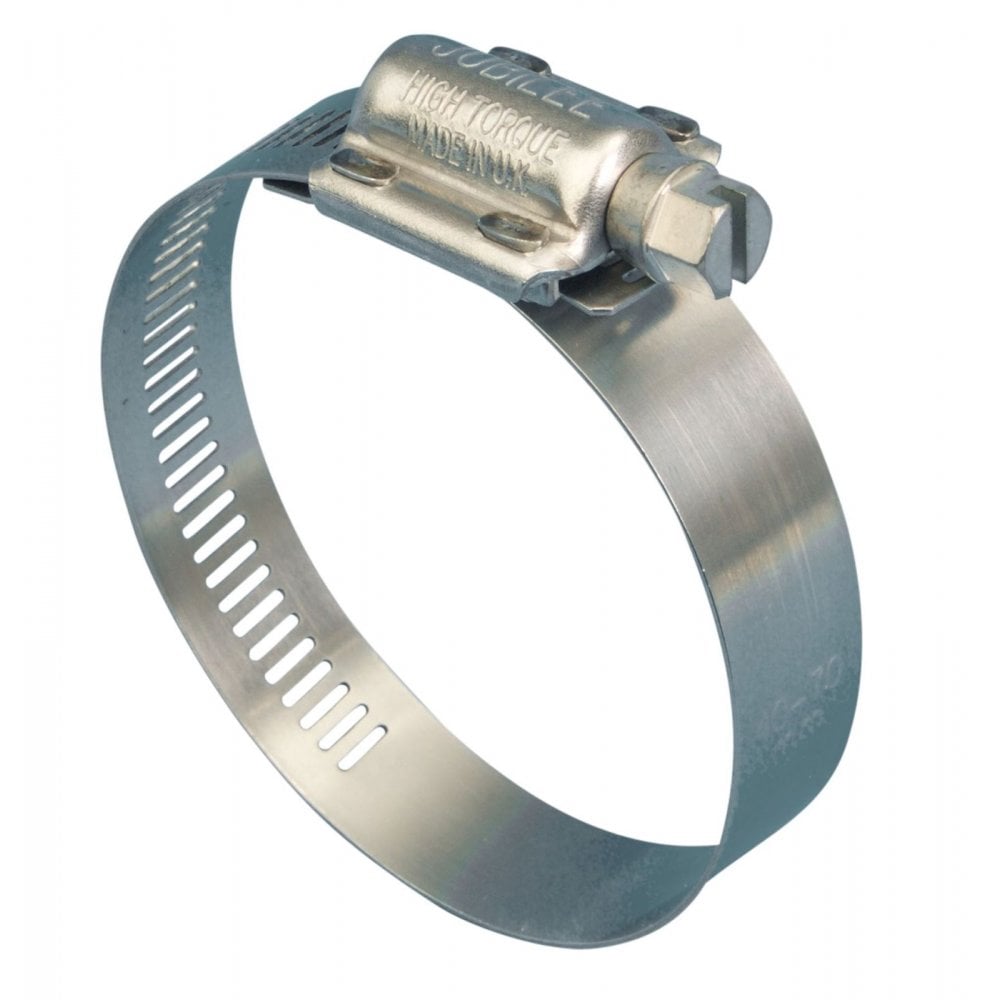

Clips Stainless Steel High Torque Hose Clamp Marine Grade

Please note Clamp size (example: 47-50mm)  -The Ø represents the measure of the diameter. The diameter is always twice the radius.

• Conform to SAE J1508 type HD

• 8mm A/F slotted screw

• All 304 stainless steel

• Twice, the tightening torque of standard worm drive hose clips creates more than twice the band tension for stubborn leakage and high-vibration applications.

• Breaking torque is 17 Nm, comparable to conventional ‘T’ bolt clips of equal size.

• Recommended tightening torque 11.9 Nm (106 lbs in).

• Appropriate in those heavy-duty situations where the general British Standard product is not suitable.

Jubilee High Torque Clips are suitable for heavy-duty applications with plastic or reinforced hoses. The high clamping forces make this clip ideal for heavy-duty applications where stubborn leakage or vibration issues make lesser clips and clamps unsuitable. Jubilee High Torque clips are made of 304 stainless steel, with a two-part housing and cut through the band, keeping the band straight at the point of engagement and fully engaging all of the screw thread, giving a superior tightening torque. Although unsuitable for soft hoses, where the high forces and the perforated band may cut into the hose, they are ideal where a high clamping force is required. With a flexible band material, they can achieve a high level of friction even against a smooth surface such as a metal pole. Compared to alternative heavy-duty clamps, stock requirements are reduced with a wide clamping range. The flexible band also offers better sealing at lower torques than nut and bolt style heavy-duty clamps, which, combined with weight-saving benefits, make Jubilee High Torque Clips a versatile and superior heavy-duty clamp.
